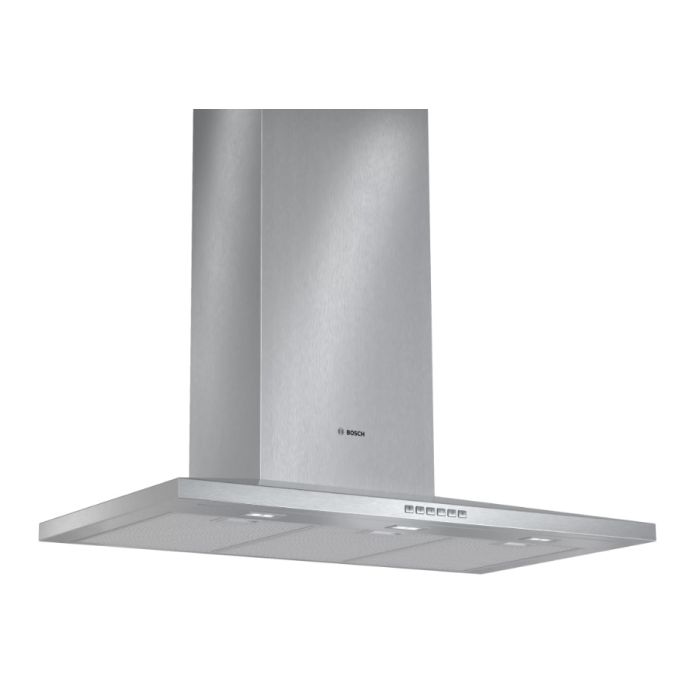

Bosch DWW097A50B BOSCH SERIE 4 90cm WIDE CHIMNEY HOOD STAINLESS STEEL

General
Width
90 cm

Color body
Stainless steel

Installation type
Wall-mounted

Air circulation
Convertible

Total power of the motors
130 W

Type of control setting and signalling devices
Illuminated buttons, Low-lift pushbuttons

Number of speed settings
3

Maximum output air extraction
460 m³/h

Boost position air extraction
730 m³/h

Sound power at max. speed (2010/30/EC)
55 dB

Sound power boost (2010/30/EC)
65 dB

Maximum output recirculating air
350 m³/h

Boost position output recirculating
430 m³/h

Grease filter material
Washable aluminium

Energy efficiency rating
A+

Total annual energy consumption
32.5 kWh/annum

Height of the product
672-954/672-1064 mm

Width of the product
900 mm

Depth of the product
500 mm

Height of the chimney
582-864/582-974 mm

Minimum distance above an electric hob
550 mm

Minimum distance above a gas hob
650 mm

Diameter of air outlet
120 / 150 mm

No-return airflow flap
No

Length of electrical supply cord
130 cm

Net weight
18.2 kg

Appliance height exhaust air max
954 mm

Appliance height exhaust air min
672 mm

Appliance height recirculating max
1,064 mm

Appliance height recirculating min
672 mm


PrefectAir Sensor
No

Cooktop-based hood control

Cooktop-based hood control

Hood controls integrated into the hob let you keep your hands close to your cooking.

No

Efficient SilentDrive

EcoSilence Drive

Bosch EcoSilence Drive motor is extremely energy-efficient and quiet in operation with an especially long life.

Yes

Silence

Anti Vibration Design

Anti Vibration side walls provide more stability and reduce vibration.

Yes

Boost position
Yes

Remote control
No

Type of lamps used
LED

Number of lights (Stck)
3

Total power of the lamps
9 W

Total luminance
897 lux

Illumination type softlight

LED illumination

Energy-saving white LED lights provide clear and bright illumination for the hob area.

No

Average illumination of the lighting system on the cooking surface E_middle(2009/125/EC)
897 lux
